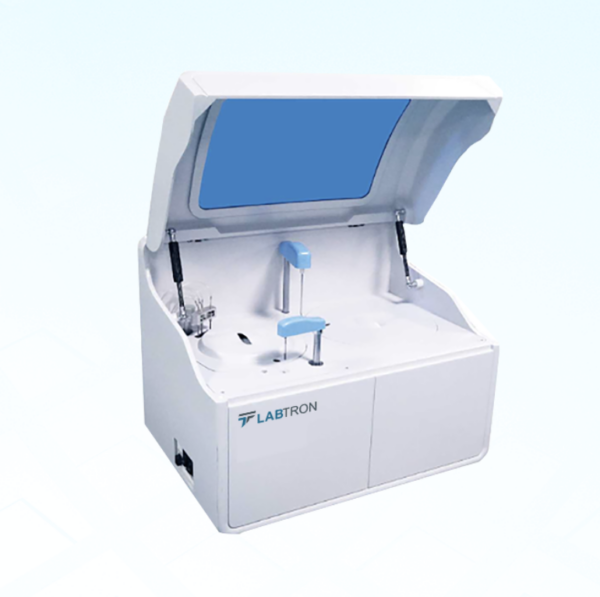

Auto Chemistry Analyzer LACA-A20

Features

• Intelligent software for efficient operation

• High-quality components ensuring reliability

• Uninterrupted workflow for continuous testing

• Inventory management for effective resource use

• Cost-effective operation

• Crash and collision detection for safety

• Robust testing capabilities for diverse assays

• Efficient reagent and consumable use

• Simplified operations with a user-friendly graphical interface and touch-screen monitor

• Refrigerated tray with an independent switch for reagent cooling

Specifications

• Throughput: 200 tests/hour

• Sample Volume: 2 to 70 µl

• Reagent Volume: 20 to 350 µl

• Sample Positions: 37

• Reagent Positions: 28

• Absorbance: 0~3.0 Abs

• Humidity: 30 to 80%

• Washing: Automatic cuvettes washing

• Probe Washing: Automatic interior and exterior probe washing

• Refrigerated Tray: Independent switch for reagent cooling

• Cuvettes: 48 reusable cuvettes, optical length 6mm

• Mixing Probe: Independent stirring

• Stat Function: Yes

• Light Source: 6V/10W halogen lamp

• Spectrophotometry: Post-spectral spectrophotometry

• Calibration: Linear (K factor, 1-point, 2-point, multipoint linear), Non-Linear (Spline, Polygon, Index, Logarithm, Logit-4P, Logit-5)

• Quality Control: Real-time QC, Westward multi-rule, Cumulative sum check, Twin Plot(2D)

• Software: Windows 7/8/10, 32 or 64bit

• LIS System: Bi-directional, supports HL7 protocol

• Interface: LAN port access

• Printer: External, multiple reporting modes available

• Temperature: 10 to 30°C

• Temperature Control: 37±0.1°C, real-time monitoring

• Water Consumption: Deionized water, 5 L/H

• Power Supply: AC220V±10%, 60/50Hz, 110V±10%, 60Hz, 300W

• External Dimensions (W×D×H): 625×425×460 mm

• Package Dimensions (W×D×H): 721×531×855 mm

• Net Weight: 36 kg

• Gross Weight: 55 kg

Applications
This device is used in biological and histopathology laboratories to extract serum, plasma, urine, or other body fluids, and is also utilized in research institutes.
