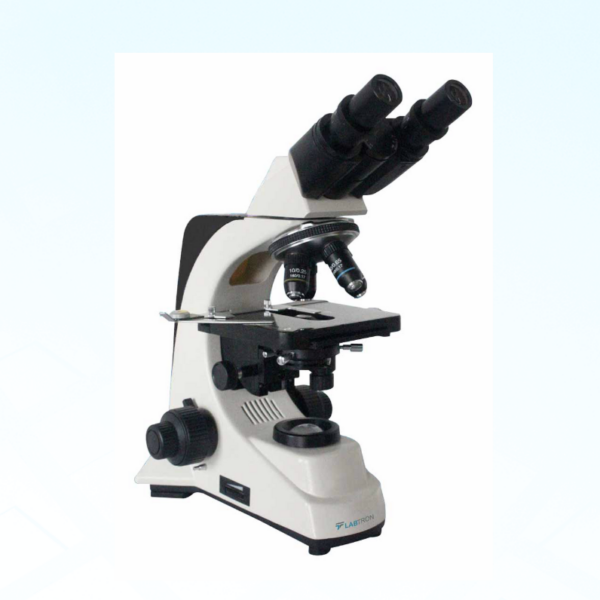

Biological Microscope LBM-A11

Features

• Siedentopf type binocular head

• Abbe N.A. 1.25 condenser with iris diaphragm and filter

• WF10X eyepiece

• Quadruple nosepiece with quick-stop

• Double layer mechanical stage with wire movement

Specifications

• Optical System: Finite optical system

• Viewing Head: Siedentopf binocular head, inclined at 30°, interpupillary distance range: 48-75mm, 360° eyepiece tube rotation

• Eyepiece: WF10X/18 mm

• Nosepiece: Quadruple, click-stop

• Objective: Achromatic objective 4x, 10x, 40x(s), 100x(s, oil)

• Stage: Double layer mechanical stage: 140×132 mm, moving: 75×45 mm

• Focusing: Coaxial coarse & fine adjustment, focusing range 30mm, focusing interval 0.002 mm

• Condenser: Abbe N.A. 1.25 with iris diaphragm and filter

• Illumination: 3W LED, adjustable brightness

• Standard Accessories: None

• Dimensions (W×D×H): 350×245×460 mm

• Net Weight: 5.0 kg

• Gross Weight: 7 kg

Applications
The Biological Microscope is suitable for routine microscopic analysis of samples in research laboratories, schools, institutes, and colleges.

Optional Accessories

• Phase contrast kit (10x, 20x, 40x, 100x)

• Dark field condenser

• Eyepiece WF16X
